Plug-in foot pedestals / Alu-Rapid V

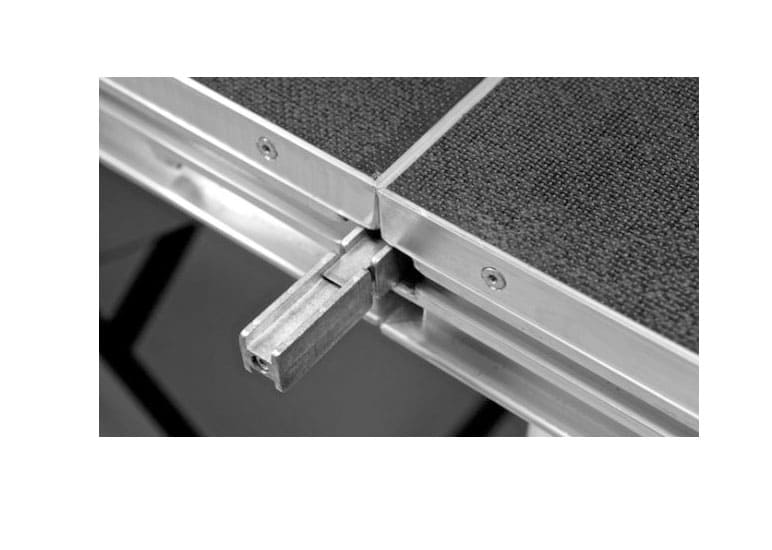

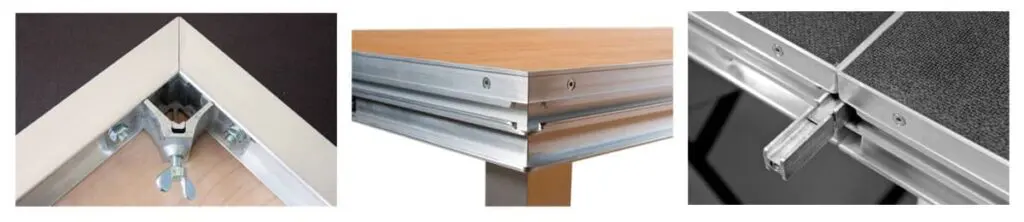

Alu-Rapid V plug-in pedestals are the solid basis for a successful overall appearance. Made from a high-quality aluminum frame and a firmly screwed base plate. The all-round fastening groove ensures a secure connection between the individual elements and is used, among other things, for the secure fastening of stairs, railings and cladding. There are four variable plug-in foot holders on the underside, suitable for plug-in feet from 40 - 60 mm and round tubes of Ø 48 mm.

No tools are required to fit the feet. All parts are screwed together and can be easily replaced. They play just as important a role at cultural events in the music industry, at municipal events and television studios as they do at trade fairs, product presentations, media events and industrial events.

Event Rental Services. Professional sound & lighting and AV solutions for media productions.

Key features:

• Standard size: 100 x 200 cm (special sizes and shapes are possible).
• Size: 50 x 200 cm (special sizes and shapes are possible).
• Size: 50 x 100 cm (special sizes and shapes are possible).
• Weight: approx. 36 kg with 22 mm blockboard. ( standard )
• Frame height - stacking height: 8 cm
• Payload:
  750 kg/m² with a max. construction height of 1.20 m with plug-in feet 60 x 60 x 2 mm without diagonal bracing.
  500 kg/m² at a max. construction height of 1.68 m with plug-in legs 60 x 60 x 4 mm without diagonal bracing.
• Point load:
  At 750 kg/m² = 2474 kg per platform.
  At 500 kg/m² = 1650 kg per platform.
